Product Description1. Screw host: professional customized two-stage compression screw host;High pressure and gas capacity;Low energy consumption and long service life;Low maintenance cost.
Details Images
Company Profile
Shenyang ABT Drilling Equipment Co., Ltd. mainly provides holistic drilling solutions, serving the mining, stone crushing, water conservancy drilling industry, to help you solve the problem of drilling at high efficiency and low cost. We mainly provide mobile air compressors, drilling rigs, hammer, drill bit, crushers, underground water detector.We are your trustworthy partner.
FAQ
1.Is it difficult to operate and make the graph?
The instrument is easy to operate and we will send you the detailed operation manual via email.
The detector directly mapping with one button, no need computer drawing mapping.
2.What is the accuracy?
Our natural electric field instruments have been made for more than ten years, with advanced technology and market test. We have obtained many invention patents. Our customer feedback rate reaches 100%. Accuracy over 95%.
3.How about after-sales service?
2 year warranty.Free data service for life.The professional geologist give the suggestions and 24hours online.
Stationary air compressors
1. Screw host: professional customized two-stage compression screw host;High pressure and gas capacity;Low energy consumption and long service life;Low maintenance cost.
2.Left and right sides fully open door design: large operation space;Easy access to service points, time-saving and efficient; Centralized chassis discharge of waste liquid, safe and environmental protection;Chassis reinforcement design, strong and durable.
3.Famous brand diesel engine: exquisite manufacturing process, reliable and durable;More powerful, fuel adaptability;Low speed response and strong dynamic performance;The integrated design has lower failure rate and more convenient maintenance;Excellent reliability, low fuel consumption.

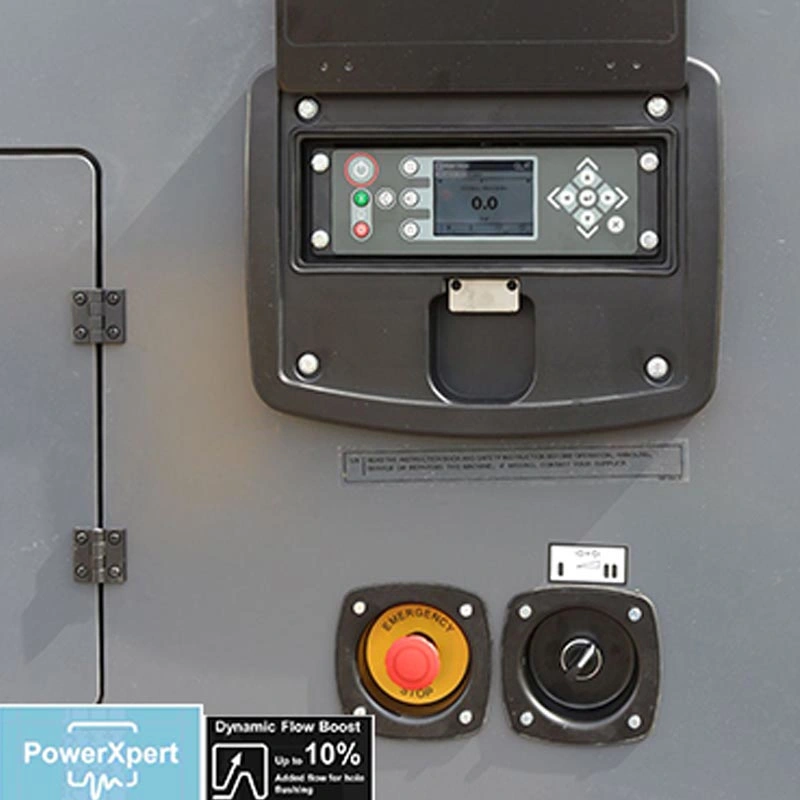

4.Controller: Chinese and English control interface, various parameters and lights are clear and practical;With data diagnosis and alarm indication, safe and reliable;Easy to operate, easy to learn.
Details Images
Model | L-SPD670D |
Engine displacement | 19 m3/min |
317 L/s | |
671 CFM | |
Rated working pressure | 19 Bar |
1.9 Mpa | |
Compressor oil volume | 80 L |
Fuel tank capacity | 350 L |
Noise Level | 75 +-/5 dB/A |
Ambient temperature | 45ºC~-25ºC |
Engine Model | 6CAT8.3-C260 |
Rated speed power | 196/260kW/hp |
Number of cylinders | 6 |
Maximum engine speed | 2200rpm |
Minimum engine speed | 1500rpm |
Lubricating oil system capacity | 21L |
Coolant system capacity | 50L |
Overall Length | 3720mm |
4870mm | |
Overall Width | 2140mm |
Overall Height | 2550mm |
Machine weight | 4570kg |
4710kg | |
Exhaust valves | 1 - G 1 1/2" 1 - G 2" |
Company Profile
Shenyang ABT Drilling Equipment Co., Ltd. mainly provides holistic drilling solutions, serving the mining, stone crushing, water conservancy drilling industry, to help you solve the problem of drilling at high efficiency and low cost. We mainly provide mobile air compressors, drilling rigs, hammer, drill bit, crushers, underground water detector.We are your trustworthy partner.
FAQ
1.Is it difficult to operate and make the graph?
The instrument is easy to operate and we will send you the detailed operation manual via email.
The detector directly mapping with one button, no need computer drawing mapping.
2.What is the accuracy?
Our natural electric field instruments have been made for more than ten years, with advanced technology and market test. We have obtained many invention patents. Our customer feedback rate reaches 100%. Accuracy over 95%.
3.How about after-sales service?
2 year warranty.Free data service for life.The professional geologist give the suggestions and 24hours online.
